BlackMagic ATEM Mini Pro

Tuotetunnus (SKU): 60014423

549,00 sis. alv

Maahantuojalla: Toimitusaika 2-4 päivää

Toimituskulut alk. 6,90€

Tämä tuote on myös vuokratuote

Vuokraa tuote

Blackmagic HDMI livestream-kytkin, jolla hallitset jopa 4 videolähdettä ja striimaat ne helposti verkkoon. Atem Mini Pro:ssa on mm. suoratoisto verkkoon ethernet-yhteydellä, tallennus ulkoiselle kiintolevylle ja monikameranäkymä. Atem mini pro:ssa on usb webcam out liitäntä, jonka kautta voit lähettää monikameralähetyksiä minkä tahansa videopuhelusovelluksen kautta (Skype, Hangouts, Microsoft teams jne). Usean kameran + tietokoneen oman näytön jakamisella onnistut ammattimaisessa presentaatiossa tai tapahtuman livelähetyksessä.

Näytä enemmän


In English:

Same rear panel as ATEM Mini with added buttons and software features
• Stream video up to 1080p HD
• Quick stream, on-air, and record buttons
• Hardware encoder so there’s no need for additional streaming software
• Control and configure timecode, stream status
• Full support and control features for BMPCC 6K and 4K cameras
• Simultaneous USB recording
• Integration with Multidock for live hard drive switching
• Customize advanced settings with XML files

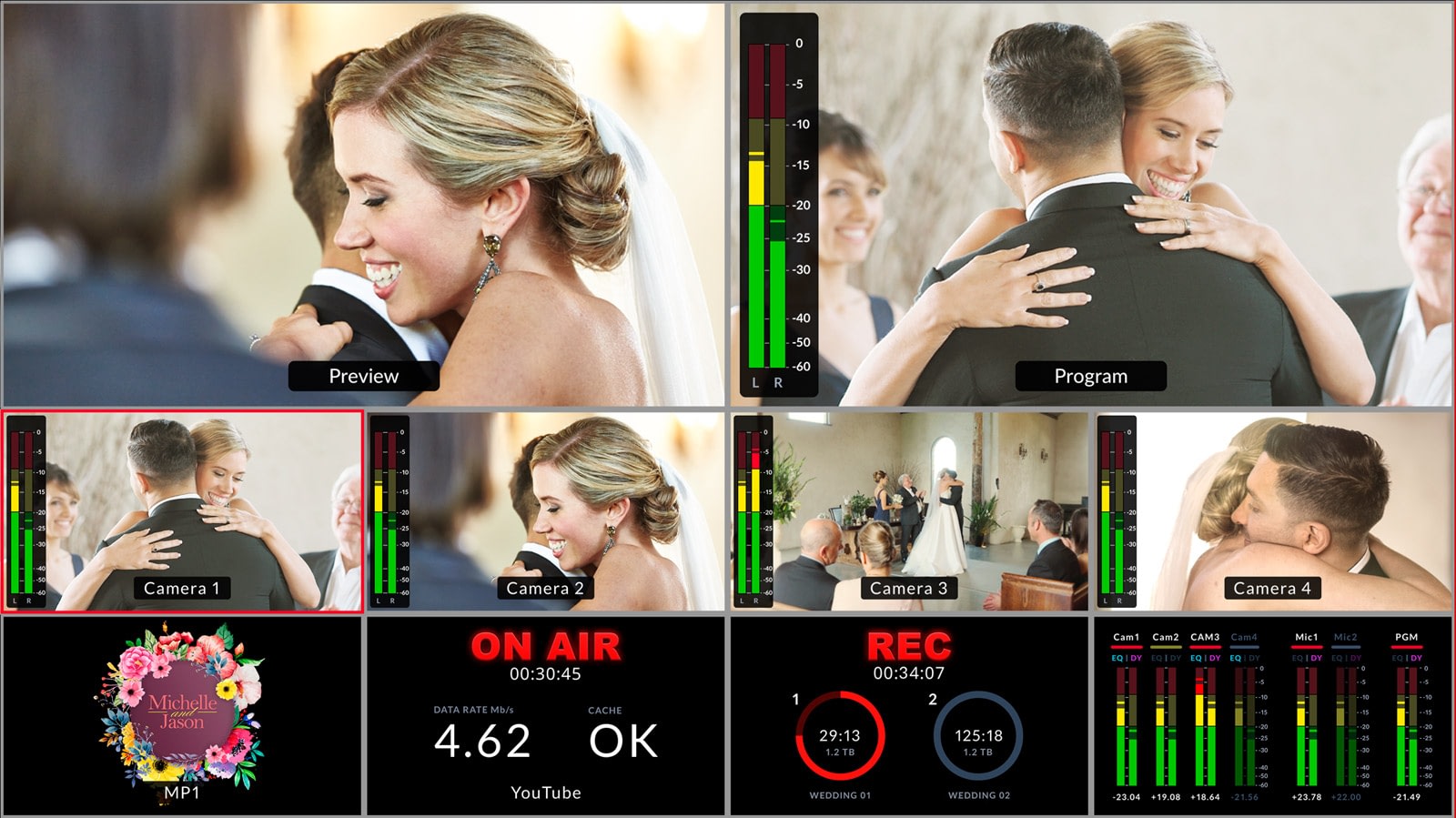

• Software multiview with program previews, graphics, record status, on air status, audio meters
• Program preview input and output buttons
• Tally light control for BMPCC 6K/4K cameras
• utomatic timecode sync for all cameras

Similar to its predecessor the ATEM Mini, the ATEM Mini Pro from Blackmagic Design is a four-input live production switcher with an integrated control panel designed for multi-camera live streaming up to HD video to the internet or broadcast applications from gaming consoles, corporate computer streams, or HD cameras. Along with the software control update, the Mini Pro builds on the Mini with features such as live stream data rate and status information, a built-in hardware encoder, simultaneous recording to USB drives, drive hot swapping with the Blackmagic Multidock, an added record and stream buttons, stream caching, a timecode generator, program preview multiview, tally support, and support for Blackmagic Design Pocket Cinema Camera 6K and 4K to utilize as your broadcast sources.

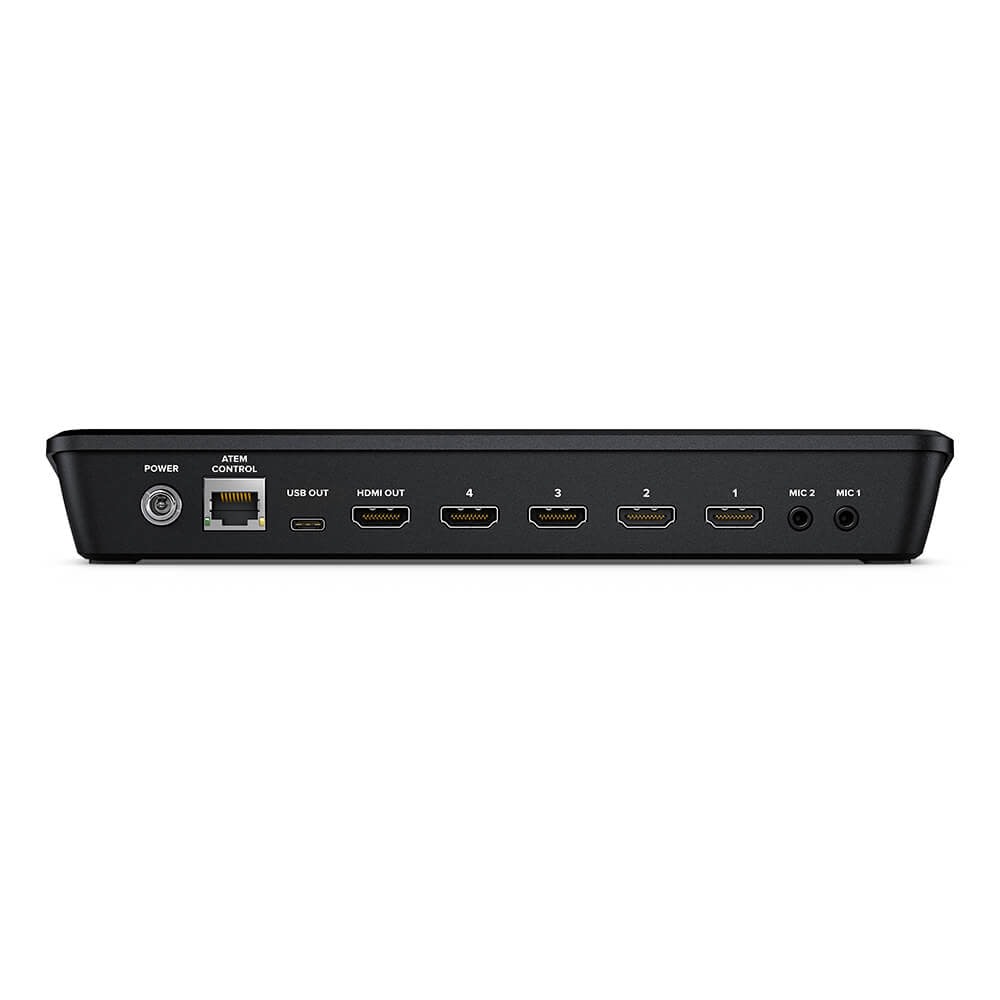

The ATEM Mini Pro retains the same rear panel setup with four HDMI inputs are available on the rear of the chassis and they input up to 1080p HD video. There is also an HDMI output for a projector or external monitor, a USB Type-C output as for streaming HD video to a computer, and an RJ45 10/100/1000 Ethernet port for streaming video through your computer, system management, remote control, and upgrades. You can adjust frame rate depending on the quality of your stream, and there is no need for additional streaming software because the Pro includes a built-in hardware encoder.

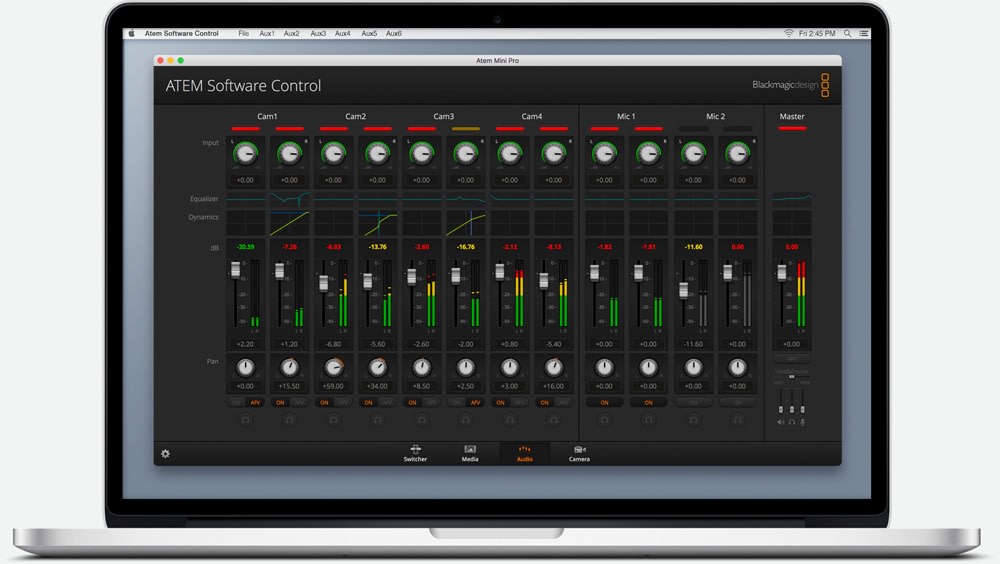

The updated ATEM Software Control Panel is used for control and configuration of the ATEM Mini Pro via USB or Ethernet, and it allows you to monitor the data rate, audio meters, configuration, and status of your live feed. The built-in color control panel has the same configuration of DaVinci Resolve, eliminating any learning curve. Advanced features include the ability for engineers to upload an XML configuration file to make it easier to change all your settings at once.

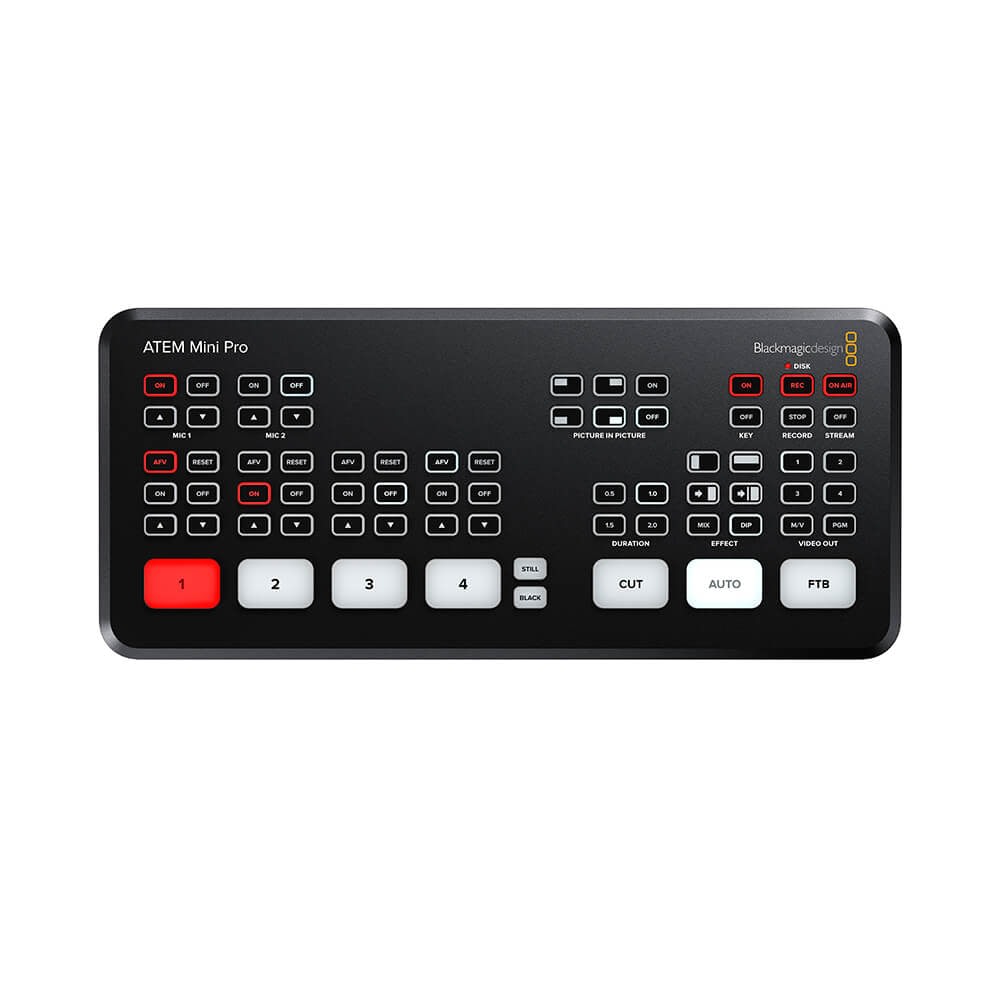

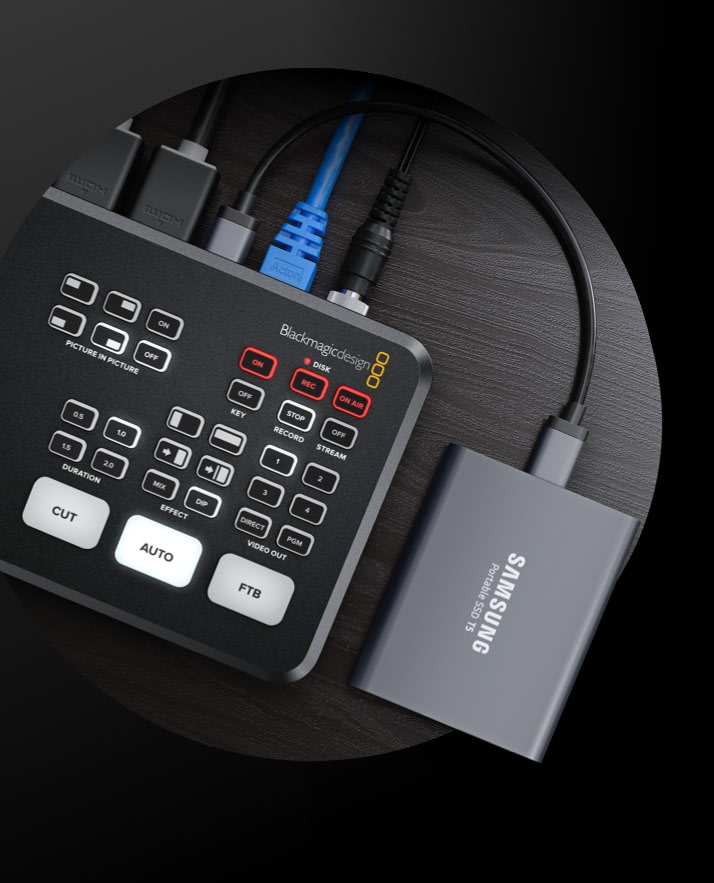

The control surface features the same easy-to-view, backlit control buttons to enable selecting camera inputs, controlling transitions, keyers, settings, and the DVE. The ATEM Mini Pro adds several buttons to the right side such as a quick record button which allows you to instantly record your live stream to the connected USB source, or by holding it down, you can hot-swap drives when using the Blackmagic Multidock if you need to quickly get down to editing. On Air and Stream buttons have also been added to instantly start and stop your stream once it is set up in software control. The added Video out out buttons on the right side allow you to select a program preview for each source, so you can make sure each source is ready to go for air.

The ATEM Mini Pro features the same upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and color generators. There is also media player support for fill and key images, which supports up to 20 stills in PNG, TGA, BMP, JPEG, and TIFF formats.

Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher
12V Power Supply with International Adapters
Control Panel Software

Inputs 4 x HDMI Type A
2 x 3.5 mm Stereo Analog Audio
1 x RJ45 Ethernet
Outputs 1 x HDMI
1 x USB Type-C

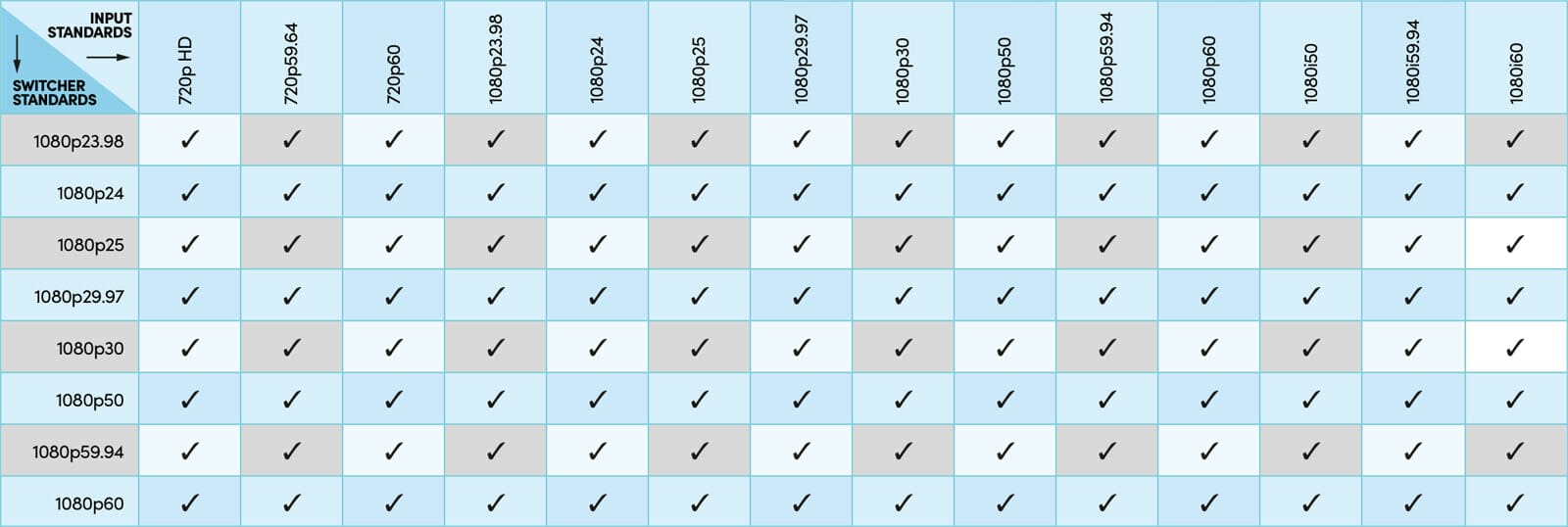

Video Input Formats HDMI Video:
1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1080i: 60, 59.94, 50
720p: 60, 59.94, 50
HDMI Resolutions for Computers:
1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1080i: 60, 59.94, 50
720p: 60, 59.94, 50
Video Output Formats 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
Video Inputs 4 x HDMI
Video Output 1 x HDMI
Audio Input 2 x 3.5 mm Stereo
Other I/O 1 x USB Type-C
1 x RJ45, Gigbit Ethernet
Video Sampling 4:2:2 YUV
Color Precision 10-Bit
Color Space Rec. 709
Color Space Conversion Hardware-Based, Real Time
Embedded Audio 2-Channel Input and Output
Audio Mixer 6-Input, 2-Channel
Media Player 1 x Player with Fill and Key
Still Image Capacity 20
Image Format Support PNG, TGA, BMP, GIF, JPEG, TIFF
Keyers 1 x Upstream
1 x Downstream
1 x Advanced Chroma
2 x Linear/Luma
1 x Transition (DVE Only)
Layers Up to 5
Generators 1 x Pattern
2 x Color
DVE Transition Keyer
Monitor Resolution 1366 x 768 or Greater
Operating System Support macOS 10.13, 10.14, or Later
Windows 10
Power Input 1 x Barrel
Voltage 12 V
Power Draw 18 W
Operating Temperature 5 to 40°C
Storage Temperature -10 to 60° C
Relative Humidity 0 to 90% Non-Condensing
Dimensions 9.4 x 4.1 x 1.4″ / 23.8 x 10.4 x 3.6 cm
Weight 550 g
