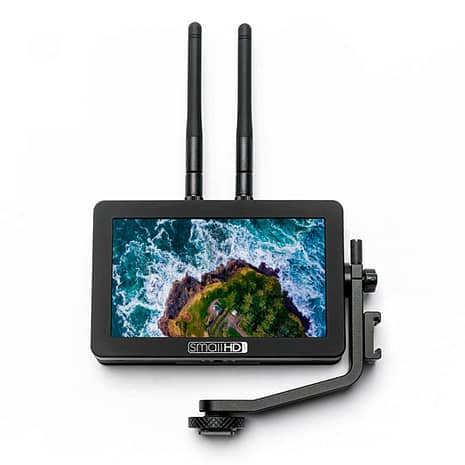

Tekniset tiedot
Display
| Panel Type | IPS Touchscreen |
| Size Diagonal | 5 |
| Resolution | 1280×720 |
| Pixel Density (PPI) | 294 |
| Aspect Ratio | 16:9 |
| Active Area | 5 |
| Brightness | 800 nits |
| Color Gamut | 70% NTSC |
| Color Depth | 10-bit processing |
| Viewing Angle | 160 Degrees |
| Backlight Type | White LED |
| Adjustable Backlight | Y |
| Temperature Adaptive Color | No |
Input Signal Types/Formats
| 3G-SDI | Not Supported |
| HD-SDI | Not Supported |
| SD-SDI | Not Supported |
| HDMI | Supports UHD-1 4K at 30/29.97 @ RGB 444 8bit, YCC 444 8bit, YCC 422 12 bit & 24/23.98 @ RGB 444 10/8 bit, YCC 444 10/8bit, YCC 422 12 bit, YCC 4:2:2, 8/10/12 bit color in RGB & YCC 4:4:4, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p/100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p59.94, 480p60, 480p100, 480p119.88, 480p120, 480p239.76, 480p240, 576p50, 576p100, 576p200, 480i59.94, 480i60, 480i119.88, 480i120, 480i239.76, 480i240, 576i50, 576i100, 576i200 |
| Component | Not Supported |
| Composite | Not Supported |
| Audio | HDMI |
Output Signal Types/Formats
| 3G-SDI | Not Supported |
| HD-SDI | Not Supported |
| SD-SDI | Not Supported |
| HDMI | Not Supported |
| Component | Not Supported |
| Composite | Not Supported |
| Audio | Stereo Out (headphones) |
Wireless
| Video Inputs | 1x HDMI |
| Video Outputs | N/A |
| SDI Ancillary Data | NO |
| Delay Tx To Rx | < 1mSec (0.001 sec) |
| Supported Resolutions | 1080p60/59.94, 1080p/50, 1080i60/59.94, 1080i/50, 1080p30/29.97, 1080p24/23.98, 720p60/59.94, 720p/50, 480i60/59.94, 480p60/59.94, 576i50, 576p/50 |
| Video Compression | Visually lossless |
| Audio Compression | 48 kHz 24-bit PCM |
| Switches | N/A |
| USB Interface | NO |
| Wireless Network | 5GHz |
| RF Channel Selection | AFS (Automatic frequency selection) |
| Encryption | AES-128 |
| RF Power | 22dBm EIRP |
| Range | Upto 500′ line of sight (or 500′ LoS) |
| Noise Rejection | Can coexist with WiFi and 5 Ghz cordless phones |
Connector Type
| HDMI | 1x Micro-HDMI Input |
| Audio | ⅛” Stereo mini-jack |
| Power In | 1x Sony L-Style Battery slot |
| Power Out | Barrel (3.5mm outer, 1.1mm inner) barrel output for powering cameras via camera specific adaptor. |
| USB | 1x Micro-USB for future use |
Controls
| Primary Control Interface | Capacitive Touchscreen |
| Record/Capture | Capture Tool |
Data I/O
| Storage | SD Card for Image Capture / Overlay, LUT Loading, Firmware Upgrades |
| Wireless | Compatible with SmallHD BTR1 Wireless Remote |
Power
| Connector Type | 1x Sony L-Style Battery slot, 1x barrel connector for powering camera |
| Voltage | 6.0 – 8.4V |
| Power Consumption | 10.4W |
| Recommended Power Supply | Battery Only Device |
| Overload Protection | Yes |
| Battery Chemistry | Li-ion |
| Output Voltage (VDC) | Mirrors Input Voltage from battery |
| Battery Capacity (mAh) | 2000mAh – 6300mAh |
| Battery Charging Time (hours) | Monitor does not support the charging of batteries |
Environmental
| Compliance | FCC, IC, CE |
| Operating Temperature | 32F to 113F |
| Screen Protection | Ships with Ultra Clear Screen Protector |
| Height | 3.3” (8.38cm) |
| Width | 1.18” (3.00cm) |
| Depth/Length | 5.25” (13.34cm) |
| Weight (Item Only without battery) | 9.2oz (260.82g) |
| Weight (Packaged) | 5oz (141.75g) |
| Mount Points | (3) ¼-20 thread points (top, bottom, & right side) |
Software
| Pixel Zoom (type) | 2x & 4x with smooth pan via pinch zoom gesture |
| Frame Guides | Preset Aspect Ratios & Customizable |
| DSLR Scale | Canon 5DMkii & Canon 7D |
| Custom Scale | Underscan Only |
| Anamorphic De-Squeeze | 1.33x, 1.5x, 1.66x, 2.0x |
| Image Rotate(Manual/Automatic) | Automatic or Manual Control |
| Image Flip (Manual/Automatic) | Automatic or Manual Control |
| Focus Assist (Colors) | User Adjustable Color Style and Intensity |
| Peaking | User Adjustable Intensity |
| False Color | Spectrum, Arri Style and Fully User Customizable |
| Zebra | Dual – User Configurable |
| Waveform | Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting |
| Vectorscope | Yes |
| PIP | No |
| RGB Parade | Fully User Customizable |
| Histogram | Luma & RGB Style |
| Horizon Indicator | No |
| Image Capture | With Dedicated Button and Image Gallery |
| Custom LUTS | Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu |
| LUT Creation | No |
| LUT Downstream | Applied on Output Preview Page |
| LUT Import | Via SD Card or USB Storage Device |
| Image Overlay | Opacity Slider and Blink Setting |
| Blue Only | No |
| Audio Meters | Up to 8 channel |
