Blackmagic Studio 4K videokamera

1849,00 sis. alv 24% // 1491,13 alv 0%

Osamaksulla 83.9 € / kk / 36kk

Kompakti broadcast kamera suurella 10″ näytöllä!

12G-SDI broadcast kamera joka on suunniteltu studiokäyttöön. 10 tuumaiselta näytöltä on helppo seurata kuvausta.

Kamerassa on 6G kuituliitäntä, Phantom-virtaiset XLR-liittimet ja MFT-bajonetti.

Toimitettavissa 4-7 arkipäivässä

Kerro tuotteesta muille:

Email
tuotetunnus (SKU) 826049 Osasto: Brand:

Kuvaus

Blackmagic Studio Camera 4K

Kompakti broadcast kamera suurella 10″ näytöllä!

12G-SDI broadcast kamera joka on suunniteltu studiokäyttöön. 10 tuumaiselta näytöltä on helppo seurata kuvausta.

Kamerassa on 6G kuituliitäntä, Phantom-virtaiset XLR-liittimet ja MFT-bajonetti.

Lisätiedot

Paino 1 kg

Blackmagic Studio 4K tekniset tiedot

Camera Features

Effective Sensor Size

13.056mm x 7.344mm

Focus

Auto focus. Peaking mode

Lens Mount

Active MFT Mount

Lens Control

Iris, focus, zoom on supported lenses

Dynamic Range

11 Stops

Screen Dimensions

1 x 10.1 inch 1920 x 1200

Screen Type

10.1 inch – TFT-LCD

Mounting Options

2 x 3/8” tripod mount. 4 x 1/4″”-20 UNC thread mounting points on top of camera. 3 x 1/4” 20 UNC thread mounting points left on right of camera

Connections

Total Video Inputs

1 x SDI

Total Video Outputs

1 x SDI

SDI Rates

1.5G, 3G, 6G, 12G

Optical SDI

Supports optional SMPTE optical module

Optical Fiber Input/Outputs

12G Optical Fiber Input and Output capable

Optical fiber SFP module sold separately

Analog Audio Inputs

2 x XLR , phantom power

Analog Audio Outputs

Aviation headphone jacks (Fixed Wing Plugs) output for talkback and audio monitoring

Reference Input

Tri-Sync or Black Burst.

SDI Audio Outputs

2 channels in 12G-SDI 48Khz and 24 bit. 2 channels for talkback on channel 15-16

Remote Control

1 x 2.5mm LANC for Iris Control and Focus. SDI CCU control from ATEM

Computer Interface

USB 2.0 Mini-B port for software updates

Audio

Microphone

Integrated stereo microphone

Built in Speaker

None

Standards

SD Video Standards

None

HD Video Standards

720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94 and 1080i60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94 and 2160p60

SDI Compliance

SMPTE 292M, SMPTE 424M Level B, SMPTE 2081-1, SMPTE 2082-1

SDI Audio Sampling

48 kHz and 24-bit

Media

Media

None

Media Format

None

Supported Codecs

Codecs

None

Control

Controls

Push button controls for navigating menus

External Control

Blackmagic SDI Control Protocol. 2.5 mm LANC connection for lens control

Color Corrector

DaVinci YRGB

Talkback And Tally

Live Tally Indicator

1 x for talent, 1 x for operator

Talkback

SDI Channels 15 and 16

Software

Software Included

Blackmagic Camera Setup for Mac OS X and Windows

Power Requirements

1 x External 12V power supply

Optional Accessories

SMPTE compatible SFP Optical Module

ATEM Talkback Converter 4K

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

What’s Included

Blackmagic Studio Camera 4K

Sun Shield and attachment screws

Turret Dust Cap

12V AC Adapter

SD card with software and manual

Warranty

12 Month Limited Manufacturer’s Warranty

Laaja tuotekuvaus englanniksi

Blackmagic Studio Camera 4K

Smal broadcast camera with large viewfinder!

The world’s first 12G-SDI broadcast camera for live Ultra HD production with 10” viewfinder, 12G- SDI, MFT lens mount, support for up to 2160p60, 4 hour battery, talkback, tally and more.

Introducing Blackmagic Studio Camera, the most advanced broadcast camera for live production! Inside its incredibly tough, lightweight magnesium alloy body you get a massive 10” viewfinder, 4 hour battery, talkback, tally indicators, phantom powered microphone connections and built in optical fiber and SDI connections that let you connect to your switcher with a single cable!

Ultra HD
Over 4 times the size of 1080HD
!
Ultra HD is the broadcast standard of the future and 4K content is already being delivered to consumers today through web video channels like YouTube and Vimeo. New Ultra HD displays deliver a picture that has 4 times the resolution of 1080 HD, that’s a massive 3840 x 2160 pixels! From the newsroom to live sporting and theatrical events, there’s no faster way to capture the beauty and realism of Ultra HD 4K than to record a live switched program with Blackmagic Studio Cameras!

Designed for Live Production
Perfect for outdoor and indoor live production

Now you can produce multiple camera live production in any location! The super bright large viewfinder and compact size of the Blackmagic Studio Camera makes it perfect for talk shows, sitcoms and broadcast news in the studio, or even live concerts and sporting events. The incredible lightweight compact design, foldable sunshade and interchangeable lenses mean you can pack an entire multi camera live production rig into a single road case! Because it’s so easy to setup and use, the Blackmagic Studio Camera is also perfect for corporate AV departments, houses of worship, schools and more!

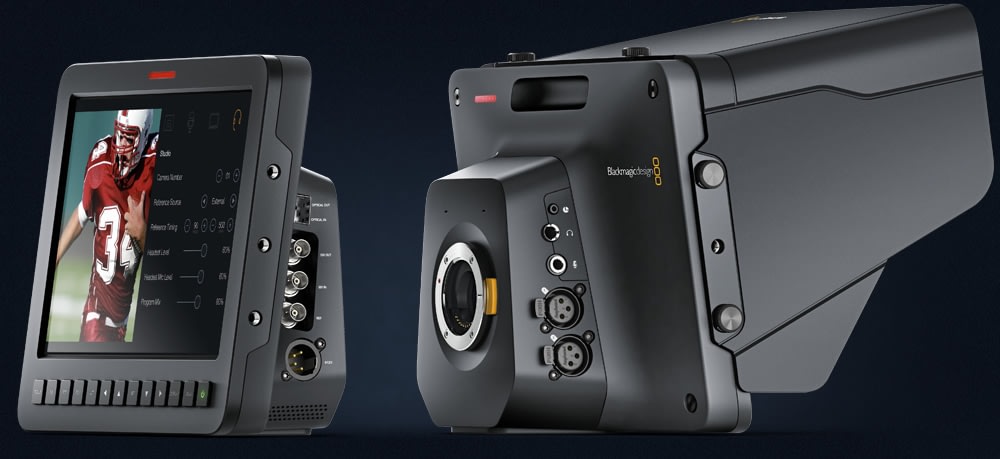

Revolutionary Design
Advanced technology in a compact, rugged design

The Blackmagic Studio camera features a compact and durable magnesium alloy body that is packed with innovative technology, making it the most rugged, portable and advanced studio camera in the world. You get a huge 10” viewfinder with sunshade for optimal viewing and control, a flexible MFT mount that gives you more lens options than any other studio camera, multiple mounting points and professional broadcast connections. Designed with the latest miniaturization technology and features, the Blackmagic Studio Camera is the world’s most advanced camera that’s specifically designed for multiple camera live production.

Large 10” Full HD Viewfinder
See every pixel in amazing detail

The Blackmagic Studio Camera includes the worlds largest viewfinder built in! The massive 10” high resolution screen has a super wide viewing angle and the large viewing area lets you see amazing detail so you can frame, focus, change iris settings, and make subtle adjustments, even when you’re live on air.

Bi-Directional Optical Fiber
Get video, audio, talkback and tally over long distances

The Blackmagic Studio Camera is the world’s first to include a built in fiber optic connection, allowing you to use a single thin tether cable to connect cameras to your live production switchers. The optical fiber connection is bi-directional and carries HD or Ultra HD video with embedded audio, talkback, tally and even camera remote control. And because it uses standard, low cost fiber optic cable, you can connect cameras over massive distances almost anywhere, even at the largest outdoor venues.

Built In Talkback
Use professional aviation headsets

The Blackmagic Studio Camera features built in talkback so the camera operator and crew can communicate at all times during production. You get general aviation headset connections so you can choose from a wide range of aviation headsets, so you get better quality talkback headsets with better noise canceling and a much lower cost. Setup is easy because talkback is embedded in the optical or SDI video connection to the camera, so you don’t have to run separate talkback cables!

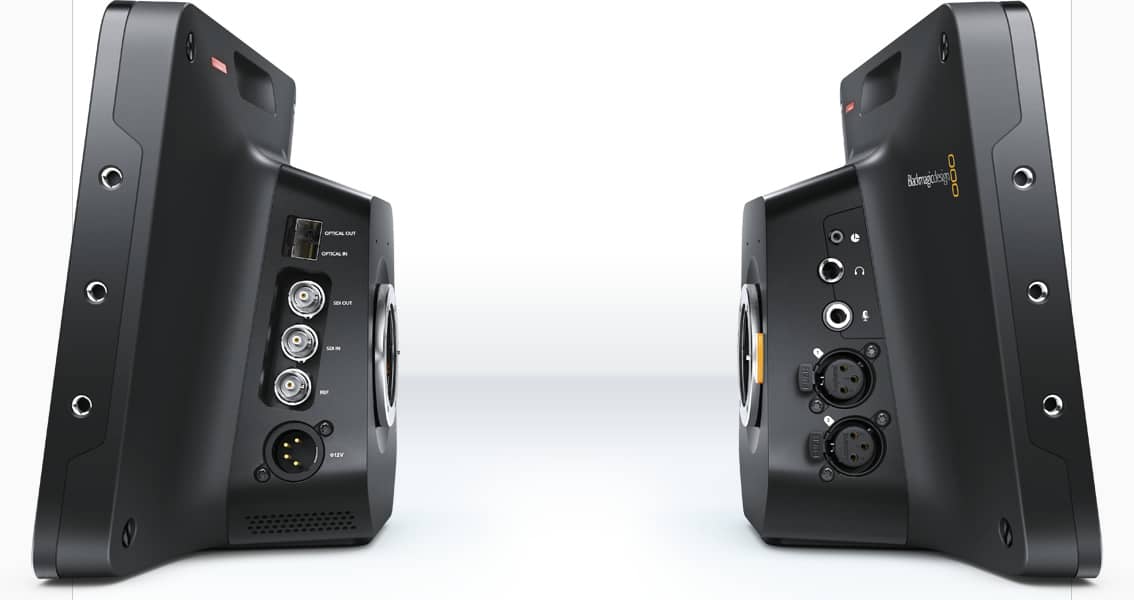

Broadcast Grade Connections
Professional connections for 24/7 reliability

Featuring broadcast quality connections you get bi-directional optical fiber and SDI connections for connecting to live production switchers or recorders. Also included is a professional aviation headsets jack, stereo XLR microphone inputs, and more. All connections are logically organized on the left and right sides of the camera, making them accessible and easy to use. Because the Blackmagic Studio Camera uses standard connectors, you don’t need expensive custom cables.

Connections:

– SDI Video Output: 1 x 12G-SDI 10-bit 4:2:2 / SDI Video Input: 1 x 12G-SDI / Ref Input: 1 x Reference Input
– Optical Fiber Input/Output: 6G Optical Fiber Input and Output
– Analog Audio Input: 2 x XLR analog switchable between mic and line levels. Phantom power support.
– Analog Audio Output: Aviation headphone (Fixed Wing Plugs) output for talkback and audio monitoring
– SDI Audio Output: 2 channels in 12G-SDI 48Khz and 24 bit. 2 channels for talkback on channel 15-16.
– Remote Control: 1 x 2.5mm LANC for Iris Control and Focus. SDI CCU control from ATEM.
– Computer Interface: USB 2.0 Mini-B port for software updates.

Mounting Options:
2 x 3/8” tripod mount. 4 x 1/4″”-20 UNC thread mounting points on top of camera. 3 x 1/4” 20 UNC thread mounting points left on right of camera.

Operating systems:

Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or higher

Windows 7 or Windows 8.
