Kuvaus

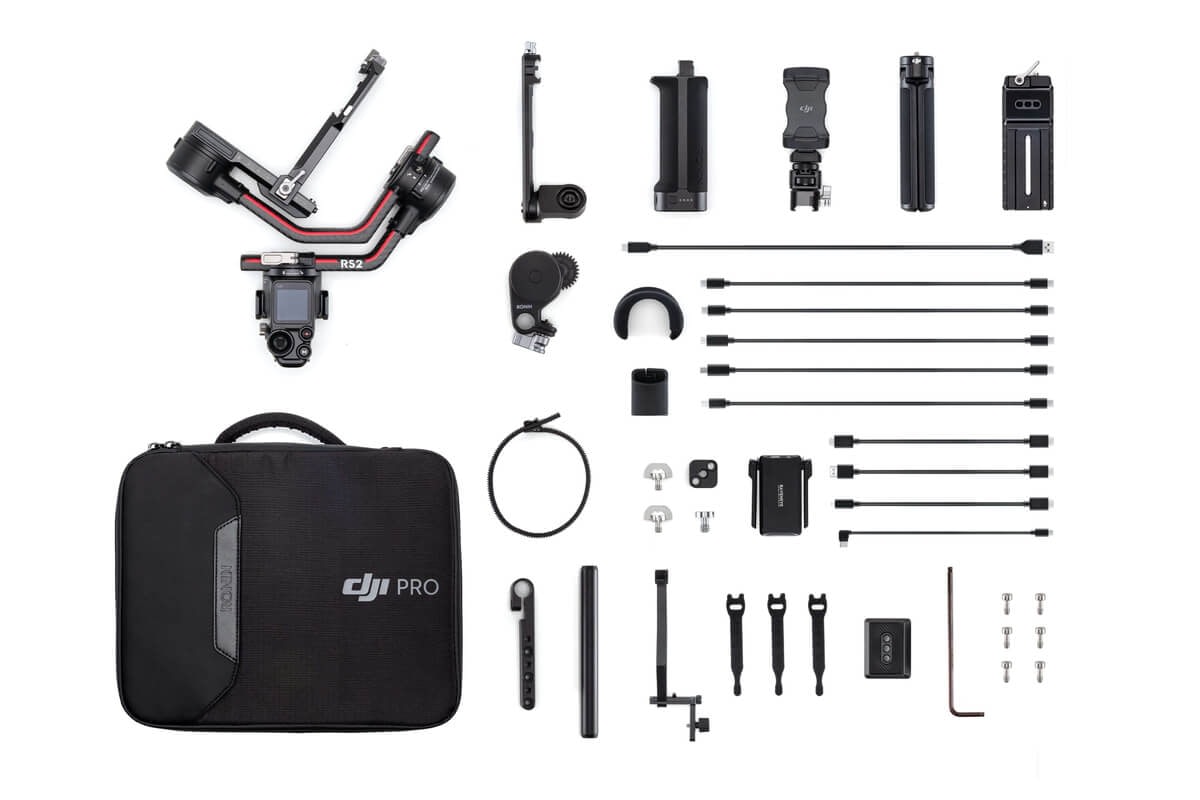

Ronin RS 2 Pro combo, sisältää seuraavat osat:
Carrying Case
USB-C Charging Cable (40 cm)
Lens-Fastening Strap
Extended Grip/Tripod (Metal)
Quick-Release Plate (Arca-Swiss/Manfrotto)
Briefcase Handle
Camera Riser
2x Multi-Camera Control Cable (USB-C, 30 cm)
Multi-Camera Control Cable (Sony Multi, 30 cm)
Multi-Camera Control Cable (Micro-USB, 30 cm)
Multi-Camera Control Cable (Mini-USB, 30 cm)
3x Hook-and-Loop Strap
2x D-Ring Camera Mounting Screw
RSA/NATO Port Cover
Pan Axis Sleeve
Screw 1/4-20
Phone Holder
Focus Motor
Focus Motor Rod Mount Kit
Focus Gear Strip
DJI RavenEye Image Transmitter
Cold Shoe to 1/4-20 Adapter
USB-C Power Cable (20 cm)
Mini-HDMI to HDMI Cable (20 cm)
Mini-HDMI to Mini-HDMI Cable (20 cm) ×1
Mini-HDMI to Micro-HDMI Cable (20 cm) ×1
M4 Screw ×6
Allen Wrench (3 mm) ×1
Tekniset tiedot:
Accessory Connections: RSA/NATO ports, 1/4″-20 mounting hole, Cold shoe mount
Video transmission/follow focus motor port (USB-C)
RSS camera control port (USB-C)
Follow focus motor port (USB-C)
Battery: BG30-1950mAh-15.4V LiPo 4S
Capacity: 1950 mAh
Power: 30.03 Wh
Max. Battery Life: 12 h
Charging Time: 1.5 h (24W USB adapter using the QC 2.0 or PD protocol)
Suggested Charging Temperature: 5°C to 40°C
Connections: Bluetooth 5.0; USB-C
Mobile Assistant Software Requirements: iOS 11 or above; Android 7.0 or above
Tested payload: 4.5 kg (10.0 lbs)
Maximum Controlled Rotation Speed
Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s
Mechanical Endpoint Range
Pan axis control: 360° continuous rotation
Roll axis control: -95° to +240°
Tilt axis control: -112° to +214°
Weight
Gimbal: Approx. 960 g (2.12 lbs) (excluding the Quick-Release Plates and Camera Mounting Plate)
Camera Mounting Plate: Approx. 150 g (0.33 lbs)
BG30 Grip: Approx. 265 g (0.58 lbs)
Extended Grip/Tripod: Approx. 226 g (0.50 lbs)
Upper and Lower Quick-Release Plates: Approx. 105 g (0.23 lbs)
Gimbal Dimensions
Folded: 260×265×70 mm (excluding the BG30 grip)
Unfolded: 410×260×195 mm (including the BG30 grip, excluding the extended grip/tripod)
